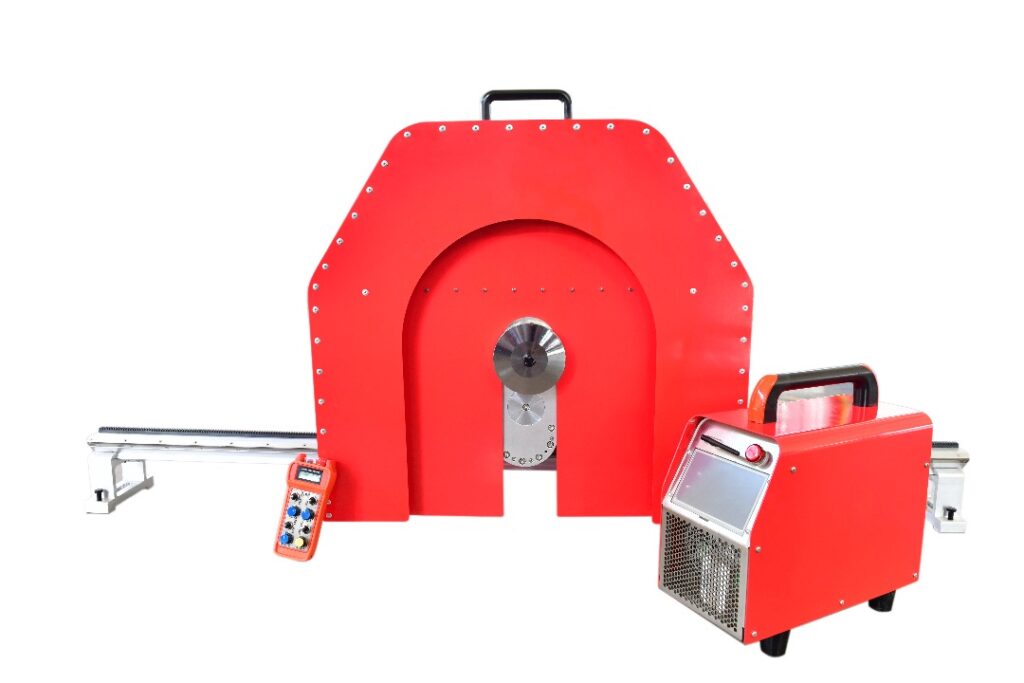

Wall Saw & Wire Saw Combo Machine for Concrete Cutting
The Wall Saw & Wire Saw Combo Machine is a high-performance 2-in-1 concrete cutting solution designed for heavy-duty construction and demolition applications.
Engineered with advanced high-frequency technology, this machine delivers powerful, precise and vibration-free cutting performance even in thick reinforced concrete structures.
This combo system allows operators to perform both wall cutting and wire sawing operations using a single integrated setup, making it a cost-effective and versatile solution for contractors and infrastructure projects.
Key Features
- High-frequency motor for powerful and stable performance
- Compatible with single-phase 220V and three-phase 380V power supply
- Smooth forward/reverse operation with stepless speed control
- Built-in edge-adjacent cutting function
- Maximum cutting depth up to 720 mm
- Wireless remote control with LCD display
- Automatic track travel and feed cutting system
- Overload, over-temperature, over-voltage and under-voltage protection
- Water-cooled cutting head for efficient operation
Applications
- RCC wall and slab cutting
- Bridge and flyover dismantling
- Beam and column cutting
- Industrial demolition projects
- Structural modification and expansion work
Technical Specifications
Motor & Power
- Maximum Continuous Output Power: 24 kW
- Main Motor Output Current: 10–50 A
- Single Phase Supply: 220V – 50Hz
- Three Phase Supply: 380V – 50Hz
- Power Conversion: Direct switching via conversion switch
Saw Blade System
- Installation Hole Diameter: φ35 / φ50 / φ60
- Direct Installation Size: φ200 mm – φ850 mm
- Allowable Blade Size: φ200 mm – φ1600 mm
- Maximum Cutting Depth: 720 mm
- Blade Rotation Speed: 0–960 rpm
- Speed Control: Forward / Reverse / Stepless Speed Regulation
- Edge-Adjacent Cutting: Built-in Full Edge Adjacent Function
Control System
- Control Method: Wireless Remote Control
- Main Unit Display: 7-inch LCD Touch Screen
- Remote Display: 3-inch LCD Screen
- Track Travel Cutting: Automatic
- Rotating Arm Feed: Automatic
- Automatic Program Control: Cruise Control
Protection Features
- Main Motor Overload Protection
- Auxiliary Motor Overload Protection
- Over-Temperature Protection
- Over-Voltage & Under-Voltage Protection
Cooling System
- Cutting Head Cooling: Water Cooling
- Minimum Water Consumption: 5 L/min
- Control Box Cooling: Forced Air Cooling
Weight & Dimensions
- Cutting Head Weight: 37.5 kg
- Packing Size: 510 × 380 × 380 mm
- Control Box Weight: 16 kg
- Control Box Size: 565 × 225 × 390 mm
Track System
- Material: High-Strength Industrial Aluminum Alloy
- Weight: 8.4 kg/m
- Track Sizes: 1m & 2m
Saw Blade Cover
- Standard Cover Size: φ900
- Material: Aluminum Alloy Panel + Stainless Steel Frame
- Weight: 13.5 kg
Performance
- Average Cutting Efficiency: 20 meters/hour (200 mm concrete)
