Stoneage International FZ-LLC offers a complete range of Large Circular Saw Blades and Diamond Segments specially designed for demanding stone processing applications. Manufactured using advanced diamond technology and premium raw materials, our blades provide exceptional cutting speed, smooth operation, and outstanding durability.
Our large circular saw blades are available in diameters ranging from 1000 mm to 4200 mm and are suitable for cutting various natural stones including granite, marble, sandstone, limestone, slate, basalt, and mica. We supply both complete saw blades and loose diamond segments based on customer requirements.

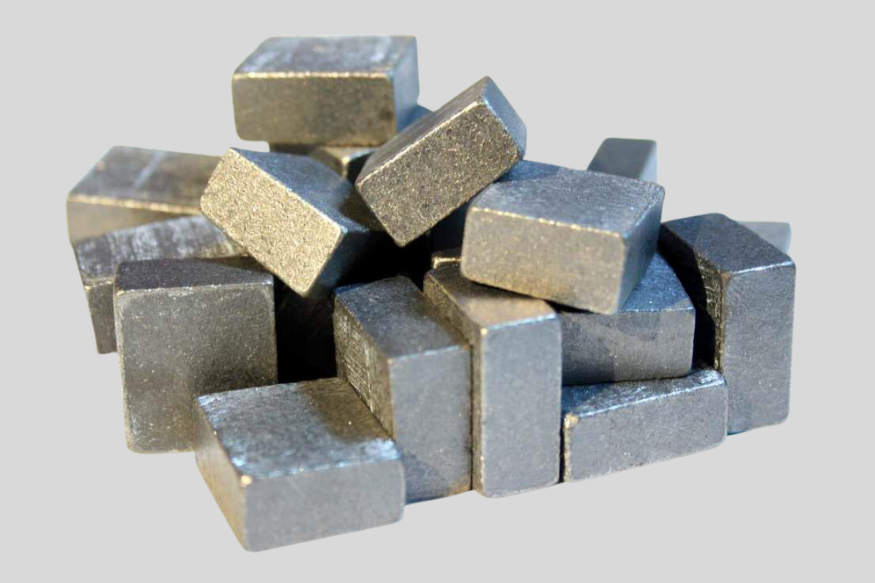

We manufacture Sandwich Segments and Multi-Layer Segments to ensure free cutting performance with minimal load on the machine and blade. These segments are designed to operate efficiently with water-based cooling systems and other cutting lubricants, providing excellent cutting stability and longer blade life.
With advanced R&D facilities and experienced tool designers specializing in metal bonding technology, our products continuously evolve to meet modern industry demands. Our innovative segment designs help absorb machine vibrations and maintain smooth cutting performance even under challenging operating conditions.
Features
High-Performance Diamond Technology Suitable for Granite, Marble & Natural Stones Free Cutting Design for Maximum Productivity Low Power Consumption Superior Slab & Tile Surface Finish Sandwich & Multi-Layer Segment Options Long Service Life Smooth and Stable Cutting Performance Available as Complete Blades or Loose Segments Compatible with Water & Lubricant-Based Cutting Systems Advanced Metal Bonding Technology Custom Manufacturing Available
Applications
- Granite Processing
- Marble Processing
- Sandstone Cutting
- Limestone Cutting
- Slate Processing
- Basalt Cutting
- Mica Processing
- Stone Slab Production
- Tile Manufacturing
- Quarry & Stone Industry Applications
STANDARD DIMENSIONS
|
Saw Diameter |
No. of Slots (narrow slot) |
No. of Slots (wide slot) |
Core Thickness (mm) |
Segment Length (mm) |
Cutting Width (mm) |
Height of Diamond Impregnation (mm) |
|---|---|---|---|---|---|---|
| 1000 | -5 | 70 | 5.0 | 23/24 | 7.0 | 10-30 |
| 1100 | – | 74 | 5.5 | 23/24 | 7.0/7.5 | 10-30 |
| 1200 | – | 80 | 5.5 | 23/24 | 7.5/8.0 | 10-30 |
| 1250 | – | 84 | 5.5 | 23/24 | 7.5/8.0 | 10-30 |
| 1300 | – | 88 | 6.0 | 23/24 | 7.5/8.0 | 10-30 |
| 1350 | – | 88 | 6.0 | 23/24 | 7.5/8.0 | 10-30 |
| 1600 | – | 104 | 6.5/7.0 | 23/24 | 9.0/9.5 | 10-30 |
| 1800 | – | 120 | 7.0 | 23/24 | 9.5/10.0 | 10-30 |
| 2000 | - | 128 | 7.5/8.0 | 23/24 | 10.0/10.5 | 10-30 |
| 2200 | – | 132 | 8.0 | 23/24 | 10.5 | 10-30 |
| 2500 | – | 140 | 9.0 | 23/24 | 11.0/12.0 | 10-30 |
| 3000 | – | 160 | 9.0 | 23/24 | 12.0/12.5 | 10-30 |
| 3500 | – | 180 | 9.0 | 23/24 | 12.0/12.5 | 10-30 |
Large circular saw blades
