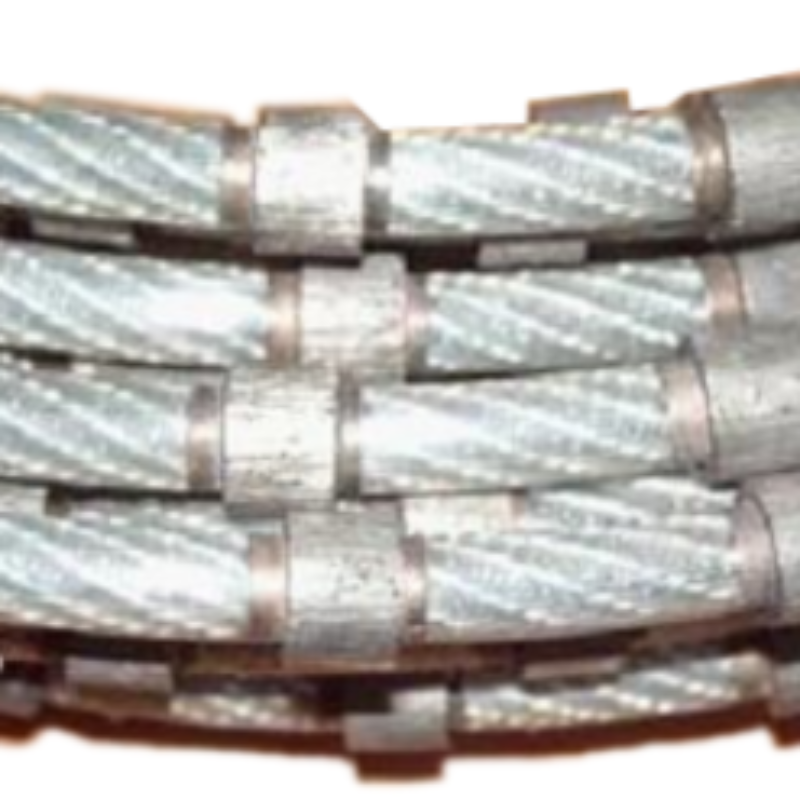

Stationary Wire is widely used for dressing of blocks of Marble and Granite. Once the granite and marble blocks are processed from the quarries, they need to be squared for further processing. The Stationary Wire machines are either with 1 or 2 wires and our stationary wire beads can be either 11 or 11.5 mm OD with 36 beads/meter. The profiling wire can be made available between 8.3mm to 8.8mm. Contact Us
                                                                      Stationary Wire
Diamond Wire Saw For Granite Profiling
|
Diameter mm |
Fixing type |
Material Type |
Sawing Speed (mm / min) |
Life Time (m2 / m) |
|
Ф 8.5 – 9.0 |
Rubber / Plastic |
Class 1-2 |
12-20 |
10-15 |
|
Rubber /Plastic |
Class 3-4 |
8-15 |
8-12 |
|
|
Rubber /Plastic |
Class 5 |
6-10 |
5-9 |
Wires For Marble Quarries
|
Diameter mm |
Fixing type |
Beads/ M |
Material Type |
Sawing Speed (m2 / h) |
Life Time (m2 / m) |
Remark |
|
Ф 11.5 |
Spring Rubber / Plastic |
28/30 32/40 |
White |
10-20 |
30-55 |
Sintered |
|
Spring Rubber /Plastic |
28/30 32/40 |
Travertine |
8-16 |
15-35 |
||
|
Spring Rubber /Plastic |
28/30 32/40 |
Compact |
5-8 |
10-25 |
Diamond Wire for Block Squaring ( Stationery Wire )
|
Diameter mm |
Fixing type |
Beads/ M |
Material Type |
Sawing Speed (m2 / h) |
Out Put (m2 / m) |
Remark |
|
Ф 11.0 Ф 11.5 |
Plastic |
37/40 |
Class 1-2 |
10-18 |
14-20 |
Sintered |
|
Plastic |
37/40 |
Class 3-4 |
7-14 |
10-15 |
||
|
Plastic |
37/40 |
Class 5 |
5-10 |
7-10 |
