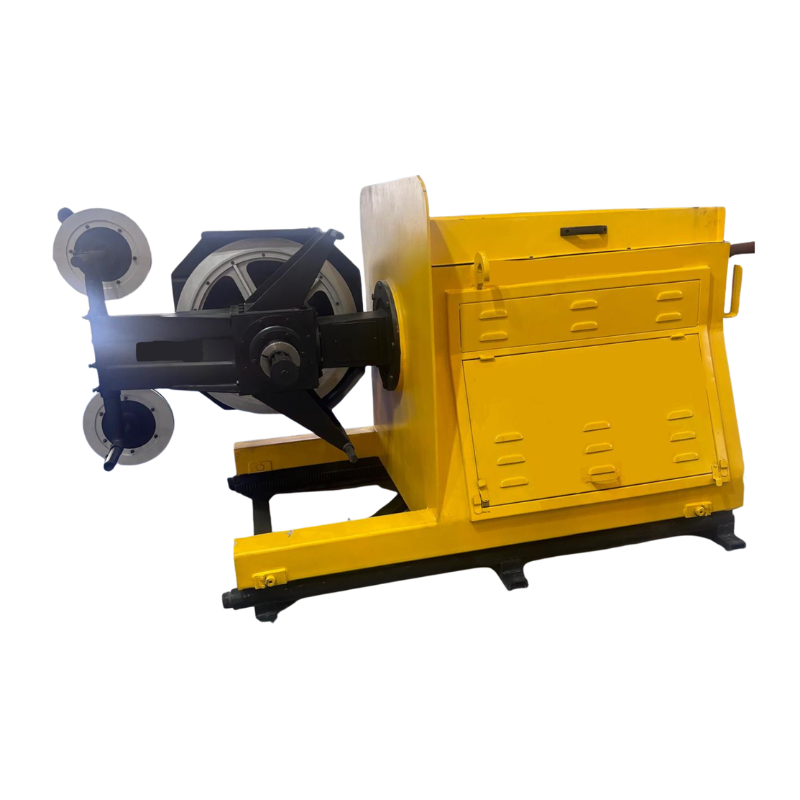

Wire Saw Machine – 20 HP, 40 HP, 60 HP, 75 HP
We have developed the 75-60-40-20 HP Wire Saw Machines to suit the entire Natural Stone Industry with competitive prices. Our machines have been designed with the latest State-of-art technology and heavy structure and stability which enables longer Diamond Wire life with high cutting speed and lower power consumption.
The Wire Saw Machines-20 HP, 40 HP & 60 HP have been designed to give high productivity with maximum yield and long life span. It can cut both Horizontal and Vertical and close to the ground levels to get an even bottom in the Quarry.
Our Machines are with heavy body so that there is no vibration while cutting and we ensure both Stability and Accuracy while cutting. Contact Us

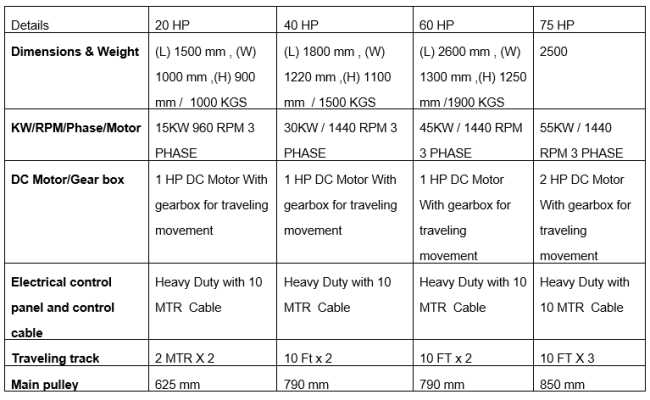

| Technical Specification – 60 HP Wire Saw Machine | |
| Main flywheel | 790 mm Diameter |
| Rotation main flywheel | 320° angle |
| Diamond wire speed: Variable from | 0-26m/s |
| main A.C. Electric Motor 1440RPM | 45KW/60 Hp [Make: Havells] |
| D.C. Electric Motor 1440RPM | 1HP [Make: ELMO] Coupled with Gearbox |
| Control Panel Board | Powder Coated Body |
| Control Panel Cable | 10 Metres |
| Railing Track | 10 FT: 2 NOS |
| Connection B/w Panel & Machine | Plug Socket System Machine to Panel |
| Electrical Contractors Used | 110 Amp – 110 Amp – 73 Amp |
| Transport Dimensions | (L) 2600mm,(W) 1300mm, (H) 1250mm |
| Total Weight | 1900 kg(Approx) |
