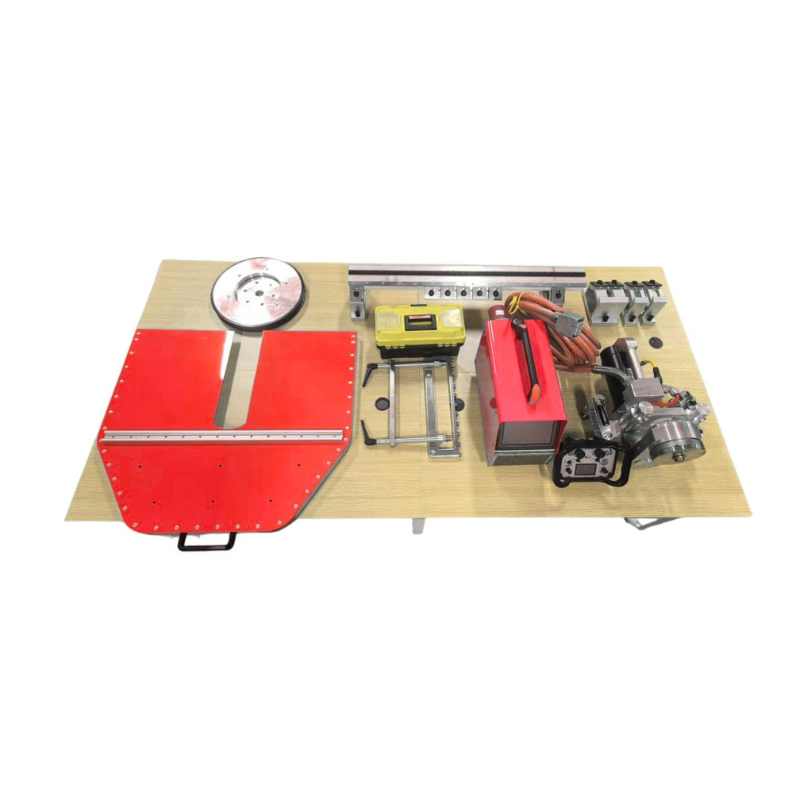

The Electric High-Frequency Wall Saw & Wire Saw Combo Machine is designed for heavy-duty concrete cutting and demolition applications. Powered by a high-frequency electric system, it delivers high efficiency, precision cutting, and smooth performance. This combo solution is ideal for wall cutting, slab cutting, beam cutting, and large concrete structures, offering maximum flexibility and productivity on-site.
✔ High-Frequency Electric Power System
✔ Wall Saw & Wire Saw Combo Solution
✔ Ideal for Reinforced Concrete Cutting
✔ Smooth, Precise & Deep Cutting Performance
✔ Heavy-Duty & Reliable Construction
Perfect for Construction, Demolition, Bridge Cutting, and Industrial Projects.
Technical Details

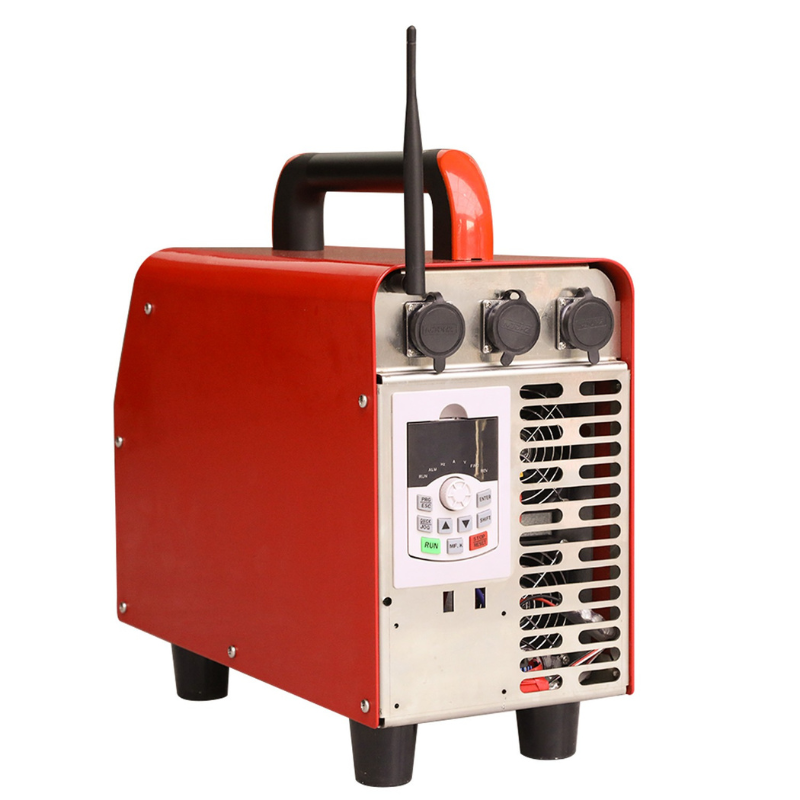

 Main Motor & Power
- Main Motor Output Power: 24kW (Maximum Continuous Output)
- Output Current: 10–50A
- Power Supply: Single-phase 220V / Three-phase 380V, 50Hz
- Input Power Conversion: Direct switching via conversion switch
Cutting Performance
- Saw Blade Diameter: Φ200mm – Φ1600mm
- Direct Installation Size: Φ200mm – Φ850mm
- Maximum Cutting Depth: 720mm
- Saw Blade Speed: 0 – 960 RPM (Stepless Speed Control)
- Cutting Efficiency: 20m/hour (200mm thick concrete)
 Control System
- Control Method: Wireless Remote Control
- Main Display: 7-inch Color LCD Touch Screen
- Remote Display: 3-inch LCD Screen
- Automatic Cruise Control: Track travel & rotating arm automatic cutting
 Cooling System
- Cutting Head Cooling: Water Cooling
- Minimum Water Consumption: 5L/min (10°C)
- Control Box Cooling: Forced Air Cooling
Machine Dimensions & Weight
- Cutting Head Weight: 37.5 Kg
- Control Box Weight: 16 Kg
- Track Weight: 8.4 Kg/m
- Track Size: 1m / 2m
